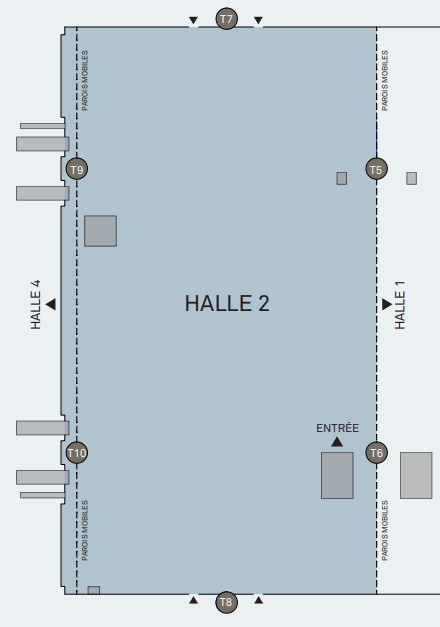

Hall 2 and its offices
Hall 2 can be used either alone or in combination with the adjacent Halls 1, 3 and 4.
Surface area
16,500 m²
Width
95.78 m
Length
172.54 m
Hauteur
12 m to roof
(9.50 m usable height for installations)
Floor loading
500 kg/m²
Features
- All under one roof
- Column-free exhibition space, except round the perimeter of the hall.
- Visitor access from the entrance hall via escalators, lifts and stairs
- Road access at ground level for freight on both sides of the building
- Movable partition walls allowing joint use of Halls 1 and 4
- Access to restaurants, multi-purpose rooms and the congress centre through the entrance hall
- Direct access to multi-purpose rooms (P, Q, R, S, T, U, V, W and X) via stairs and as required when used for exhibitions with conferences and banquets
- Entrance hall level between Halls 1 and 2: multi-purpose administrative service area 1 measuring 180 m²
Technical data
- Floor: concrete slab; Floor covering: Rodal Anti-Slip
- Overhead fixtures: all over
- Overhead fixtures: all over
- Load limit: 1,000 kg maximum per suspension point (33 kg/m² maximum)
- Freight access gates: 4 gates (9.60 x 6.00 m)
- Electric power: large capacity
- Switchboard: upon request
- General lighting: up to 350 lux
- Floor boxes: 156 floor boxes every 9.60 m
- Panels: on the platforms of Towers 5 to 10
- Electricity: power as required
- Telecommunications: telephone, IT/internet access, remote computing / fibre-optic cables
- Water and drainage: 4 bar/Ø 13 mm + Ø 60 mm
- Compressed air: 8 bar/Ø 1/2”
- Radio and TV: cable radio/TV
- Satellite dishes: rooftop platform available for satellite dish installation
- Ventilation and heating: 120 air diffusers
- Fire prevention: fire extinguishers
- Hall sound system: available (for calls and announcements)
- Toilet facilities: access via Towers 5 and 6, beneath the escalators
