Hall 7
Located at the exit of the international airport–railway station complex, Hall 7 is a space that can easily be used independently, as it has its own separate entrance. It can also be used in combination with the Geneva Arena performance venue.
Surface area
13,000 m²
Width
50 m
Length
265 m
Height
12 m to roof (9.50 m usable height for installations)
Floor loading
1,000 kg/m²
Features
- All under one roof

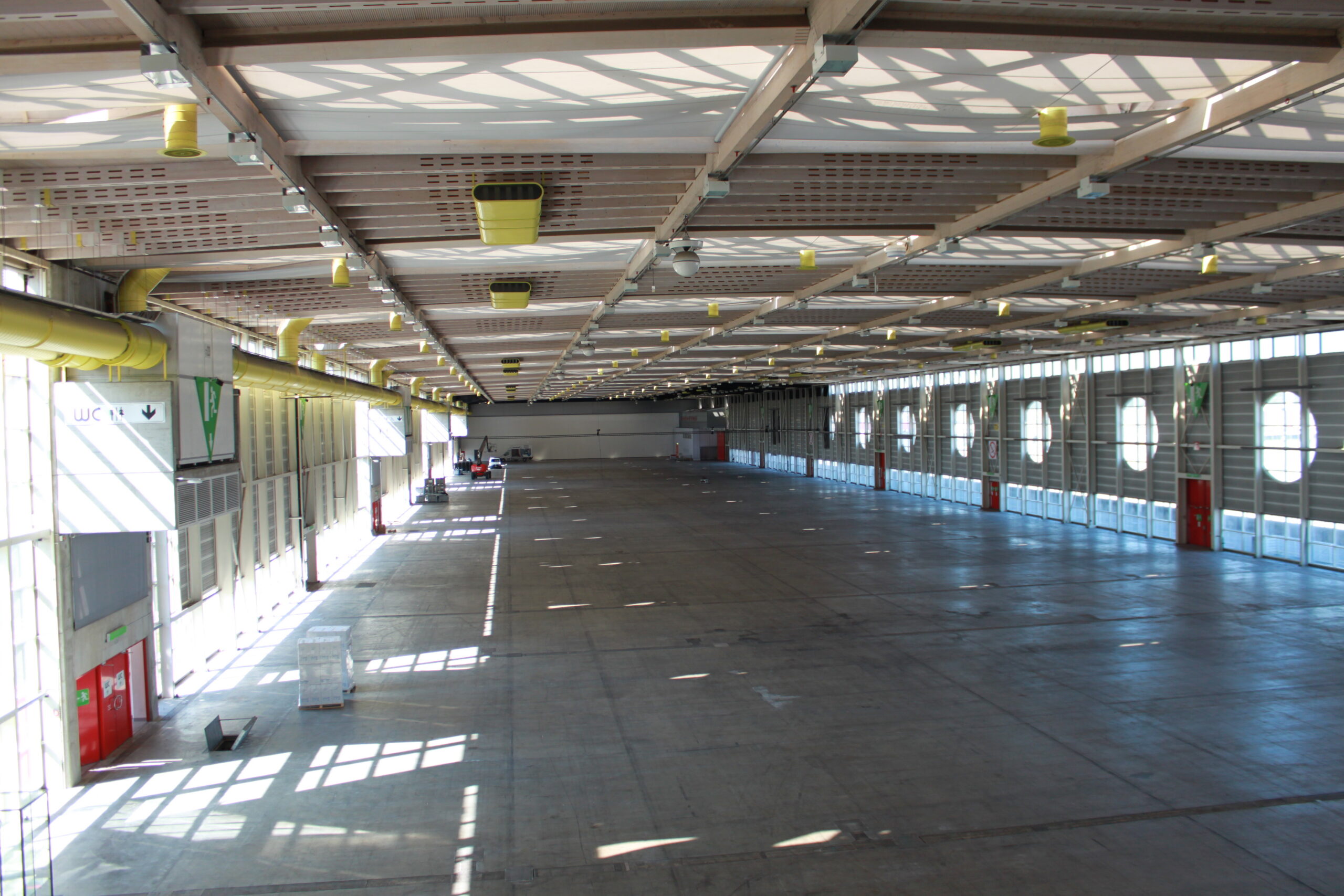

- Column-free exhibition space, except round the perimeter of the hall.
- Visitor access: through the entrance on the airport/railway station side, or via Hall 6 which links Halls 1–5 to Hall 7
- Road access at ground level for freight on the airport runway side
- 1 office measuring 65 m²

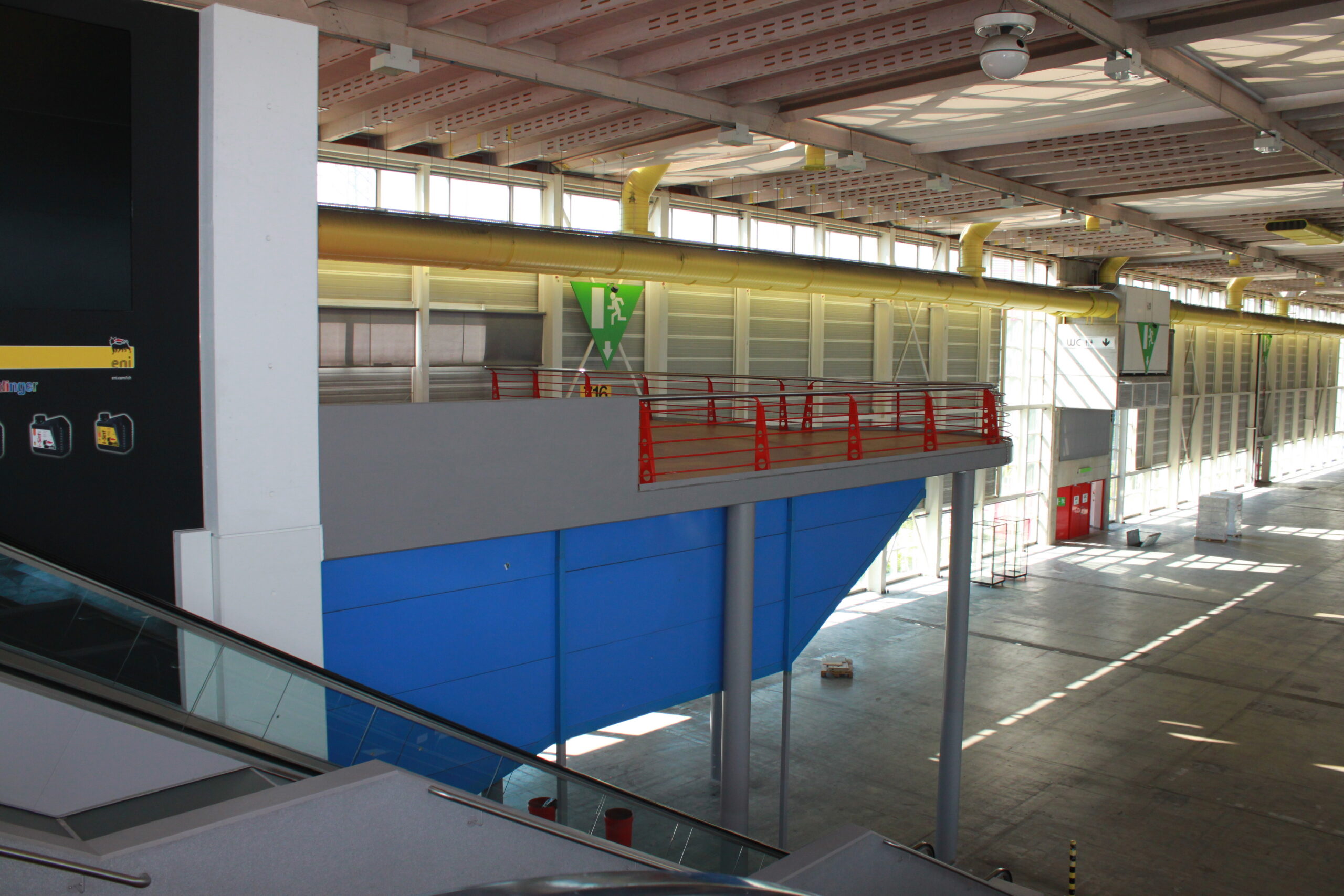

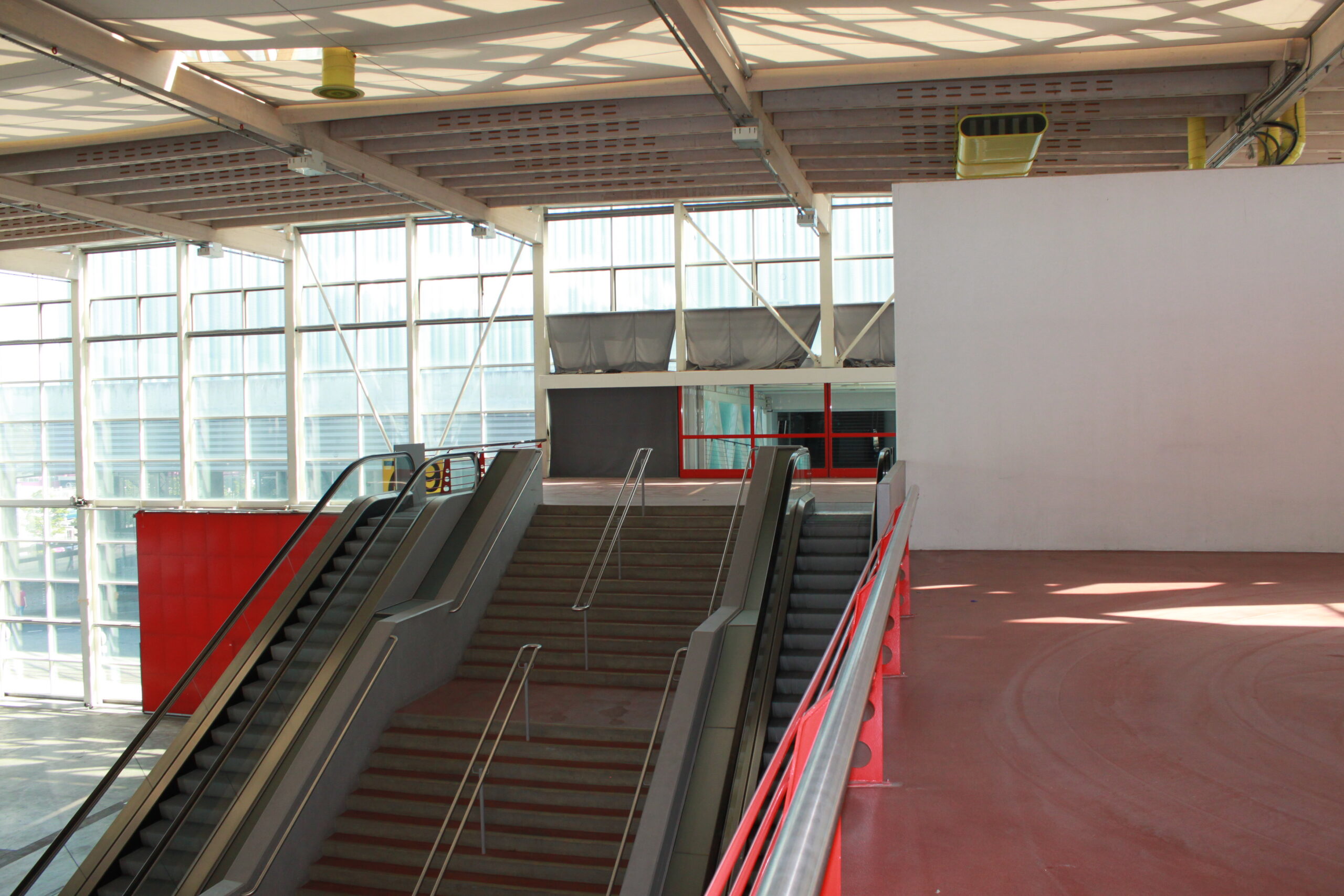

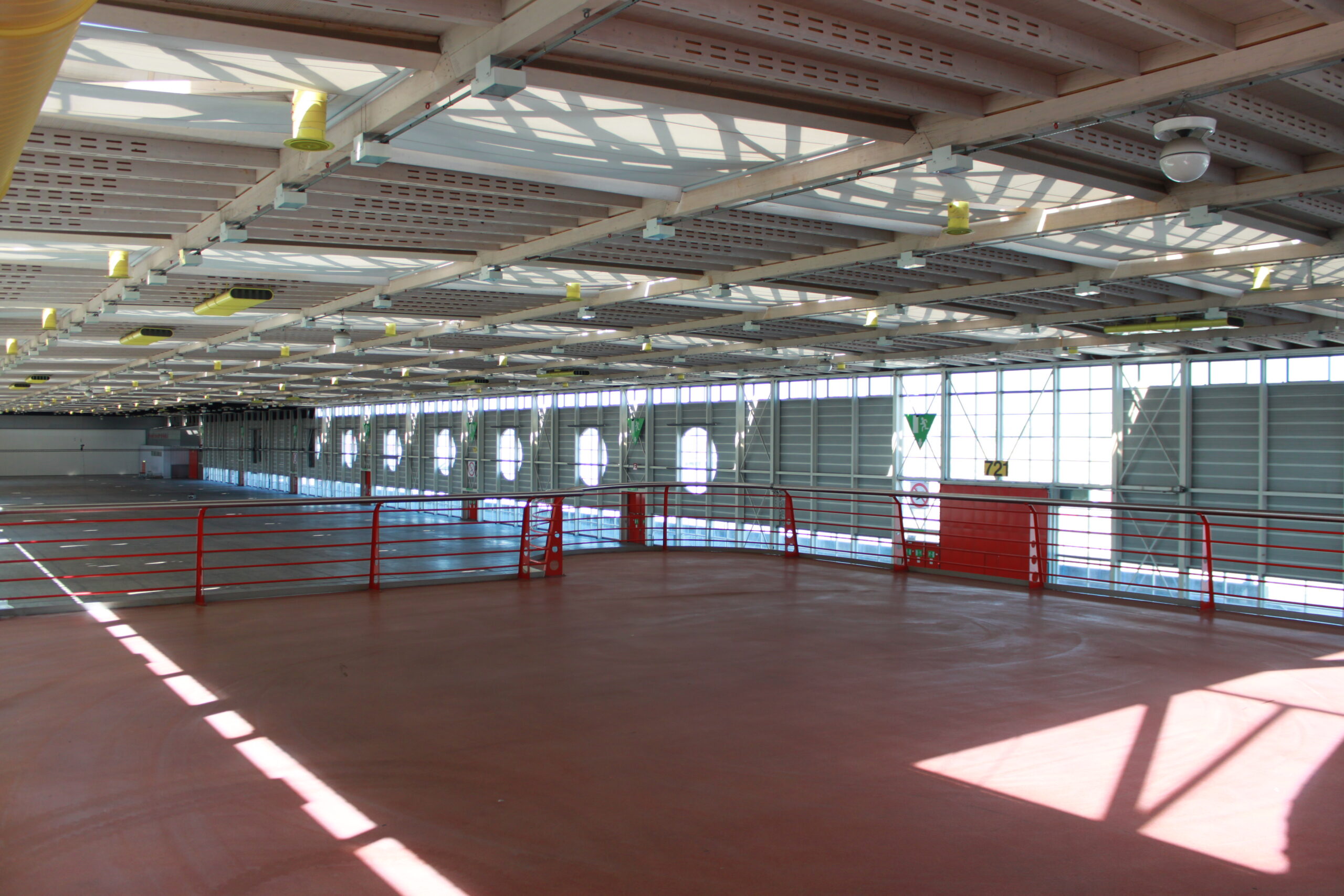

- Connected to Hall 6 via a staircase and to Hall 5 by a covered passageway providing access to a multi-purpose mezzanine
Technical data
- Floor: reinforced concrete slab in zone P26 and mixed steel/concrete slab
- Overhead fixtures: 606 suspension points at 3.60 m x 7.20 m intervals
- Load limit: 1,000 kg maximum per suspension point (25 kg/m² maximum)
- Freight access gates: gates 719 and 721 (6.50 x 5.65 m); gate 729 (6.50 x 5.45 m)
- Main entrance: access from P26 car park
- Electric power: large capacity
- Switchboard: upon request
- General lighting: 300 lux
- Floor boxes: 123 floor boxes
- Electricity: power as required
- Telecommunications: telephone, IT/internet access, remote computing / fibre-optic cables
- Water and drainage: 4 bar/Ø 13 mm + Ø 60 mm
- Compressed air: 8 bar/Ø 1/2”
- Radio and TV: cable radio/TV
- Satellite dishes: rooftop platform available for satellite dish installation
- Ventilation and heating: 84 air diffusers
- Fire prevention: fire extinguishers
- Hall sound system: available (for calls and announcements)
- Toilet facilities: Towers 26, 24 and 23 on the lower level, including access for disabled people
